Product Details
| Weight | 1070 G/sq.m | Size | 1000mm |
|---|---|---|---|
| Diameter | 1.4mm | Color | Yellow |
| Temperature Resistance /Working Temperature | 800℃ | Usage | For Heavy Duty Welding Or Fire Protection |
| Highlight | welding blanket roll,fiberglass welding blanket roll | ||
Product Description

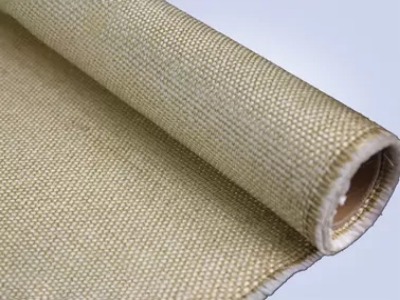

Heavy Duty Vermiculite Coated Fiberglass Fire Protection Blanket 800 C Resistance
Material Introduction:
Heavy weight texturized fiberglass fabric impregnated with specially formulated dispensers ;
It resist high temperature ,has abrasion resistance properties;
Usde for the manufacturering of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.
Why this type:
1. Excellent certified fire resistance.
2. Extreme high temperature resistant .
3. Thickness, unit weight, weave, all can be customized base on your use method.
Technical Parameters:
BASE FABRIC | Base fabric style No. TGF1000 | |||
| (Metric) | (English) | Test methods | |
Weave | Plain | Plain |
| |
Yarn |
|
|
| |
Warp | ET9 1250 tex | ETG 4.0 |
| |
Weft | ET9 1250 tex | ETG 4.0 |
| |
Construction |
|
|
| |
Warp | 5 ± 0.5 ends/cm | 13 ± 2 ends/inch | ASTM D 3775-96 | |
Weft | 3 ± 0.3 picks/cm | 8 ± 1 picks/inch | ASTM D 3775-96 | |
Weight | 1000 ± 50 g/m2 | 29.41 ± 1.5 oz/yd2 | ASTM D3776-96 | |
Thickness | 1.3 ± 0.1 mm | 0.05 ± 0.005 inch | ASTM D1777-96 | |
|
| |||
COATED FABRIC | Coating style No. VE226-5008 | |||
Coating | Vermiculite impregnated on both sides | |||
Weight | 1070 ± 50 g/m2 | 32 ± 1.5 oz/yd2 | ASTM D3776-96 | |
Thickness | 1.40 ± 0.05 mm | 0.055 ±0.002 inch | ASTM D1777-96 | |
Color | Brown (Yellow) |
| ||
Temp resistance | 5500C for basic fabric 8000C for the coating |
14000F |
| |
What Applications is this type for?
Fire blanket
Smoke door
Flexible sleeve
Reusable thermal insulation sheath
Thermal insulation mattress
Flexible duct
