| Width | 1.52 Mtr | Color | White Or OEM |
|---|---|---|---|
| Brand | SHIYANG FABRIC | Temperature Resistance | 550 C Degree |
| Weight | 437 G/sqm | Thickness | 0.4mm Fiberglass Fabric |
| Coating | Acrylic Coated | Application | Fire Curtains |
| Highlight | fiberglass fabric roll,high temp fabric | ||
Product Description

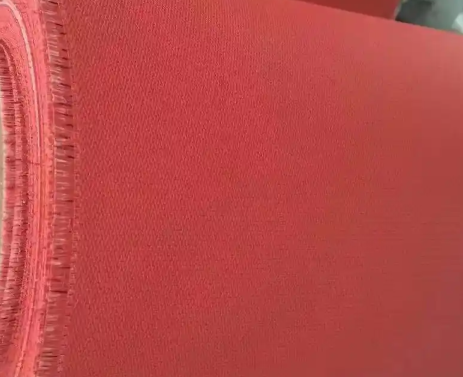

Acrylic Coated Fire Resistant Fiberglass Fabric 550C High Temp Fabric
GF430C-AC210-3003 is a medium weight woven fiberglass fabric, acrylic weave set finish medium add-on to improve fabric processing in sewing and laminating. It’s used for insulation cover, pads removable jackets, hull board fabric, fire blankets, and other types of fire control systems.
Acrylic coated fiberglass fabric from SHIYANG FABRIC offers good resistance to high temperature, being able to operate normally up to 5500C.
The weave-lock treatment stiffens the fabric slightly to reduce the amount of fraying during fabrication. The weave-lock finished fiberglass fabric enables the user to cut, sew, and punch holes more effectively.
SHIYANG FABRIC provides varieties of thickness, color options for different applications.
Fiberglass Fabric Technical Data:
| FINISHED FABRIC | Style No. GF430C-AC210-3003 | |||
| Coating | Acrylic weave-set finish two sides, medium add-on. | |||
| Weight | 440 ± 20 g/m2 | 12.90 ± 0.59 oz/yd2 | ASTM D3776-96 | |
| Thickness | 0.4 ± 0.02 mm | 0.016 ± 0.0007 inch | ASTM D1777-96 | |
| Color | Off-white | |||
| Combustibility Test | Itself extinguished within 1 second | |||
| Temp resistance | 5500C | 10000F | ||
Advantages:
- Good mechanical properties
- Easy to cut and sew
- Oil retardant, chemical resistant
Main applications:
1. Hullboard.
2. Fireproof protective barrier, fireproof curtain, fire blanket, welding blanket
3. Aerospace thermal ablation materials
4. Industrial metallurgy & furnace thermal insulation materials
5. Other fire control systems
