| Color | Silver | Application | Fireproof Blanket |
|---|---|---|---|
| Thickness | 0.2mm | Working Temperature | 140C |
| Coating | Aluminum Film One Side | Property | Fire Resistance |
| Highlight | aluminized fiberglass fabric,aluminum coated fiberglass | ||
Fireproof 140C Aluminum Foil Fiberglass Cloth 0.2mm for Welding Fire Blanket
Product Description

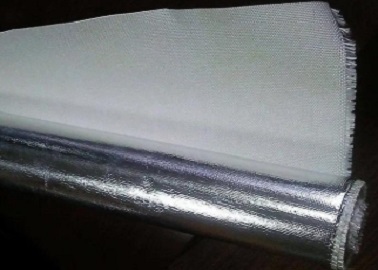

Aluminum foil/film laminated fiberglass fabrics
The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.
-One side or both sides aluminum foil/film laminated available.
-The thickness of aluminum foils available from 0.0007mm to 3mm.
-Width of fabrics available from 1000mm to 3000mm.
| BASE FABRIC | Base fabric style No. GF200P | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | EC9 68 1*0 | ECG 75 1/0 | |
| Weft | EC9 68 1*0 | ECG 75 1/0 | |
| Construction | |||
| Warp | 18 ends /cm | 48 ± 3 ends/inch | |
| Weft | 12.6 picks /cm | 32 ± 3 picks/inch | |
| Weight | 200 ± 10 g/m2 | 5.89 ± 0.29 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.20 ± 0.01 mm | 0.008 ± 0.0004 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. AF110-6009 | ||
| Coating | Aluminised polymer film ,one side | ||
| Weight | 215 ± 10 g/m2 | 6.34 ± 0.29 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.21 ± 0.02 mm | 0.008 ± 0.0008 inch | ASTM D1777-96 |
| Color | Silver | ||
| Temp resistance | Glass fabric up to 5500C (10000F) Aluminum film up to 1400C (3000F) | ||
