| Color | Silver | Application | Heat Insulation Shield |
|---|---|---|---|
| Weight | 1050g/sq.mtr | Working Temperature | Up To 150 C |
| Treatment | Aluminum Laminated | Property | Heat Insulation |
| Flame Resistance | Non-combustible | Origin | China |
| Highlight | aluminized fiberglass fabric,aluminum coated fiberglass | ||

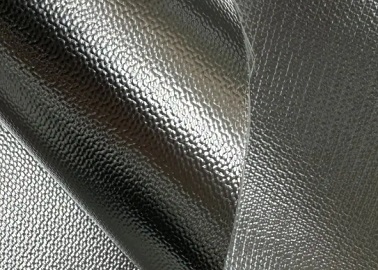

Non Combustible Aluminum Foil Fiberglass Cloth 1.3mm Laminated Heat Insulation Shield 150C
Product Description
Aluminum foil/film laminated fiberglass fabrics
The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.
-One side or both sides aluminum foil/film laminated available.
-The thickness of aluminum foils available from 0.0007mm to 3mm
-Width of fabrics available from 1000mm to 3000mm.
| BASE FABRIC | Base fabric style No. TGF1000 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 1290 tex | ETG 3.88 | |
| Weft | ET9 1290 tex | ETG 3.88 | |
| Construction | |||
| Warp | 6 ± 0.5 ends/cm | 15 ± 1 ends/inch | |
| Weft | 3.15 ± 0.3 picks/cm | 8 ± 1 picks/inch | |
| Weight | 1000 ± 50 g/m2 | 30 ± 1.5 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.3 ± 0.05 mm | 0.051 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. AL118-6006 | ||
| Coating | Aluminum foil (18 microns) laminated on one side. | ||
| Weight | 1050 ± 80 g/m2 | 31 ± 2.35 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.35 ± 0.1 mm | 0.053 ± 0.004 inch | ASTM D1777-96 |
| Color | Silver | ||
| Flame resistance | Non-combustible | ||
| Temp resistance | Glass fabric up to 5500C (10000F) Aluminum foil up to 1800C (3500F) | ||
Glass Fiber Reinforced Aluminum Foil Tape Features: It has excellent water vapor barrier properties, exceptionally high mechanical strength and oxidation resistance, strong cohesion, corrosion resistance, weak acid, and alkali resistance.
