Product Details
Standard Weight | 20oz/sqy | Standard Width | 1000mm 1520mm 1550m 2000m |
Standard Thickness | 0.017inch | Colour | Grey |
Pattern | Crowfoot | Coating Temperature Resistance | 620℉ |
Basic Fabric Temperature Resistance | 1000℉ | Coating | PTFE 2 Side |
Fiberglass | E-glass | ||
Highlight | ptfe coated fiberglass cloth,ptfe coated glass fabric |
Product Description

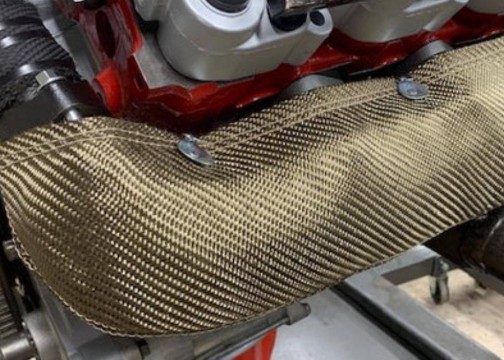

Engine Exhaust Pipe Covers PTFE Coated Fiberglass Fabric 20oz Fireproof Curtain PTFE Coated Glass Cloth
Introduce
GF430P-PTFE135-8006 is a middle weight, thickness E-glass woven glass fiber fabric coated with special PTFE coating. It has black version, can provide trustable anti-static guard for you.
Advantage
PTFE coated fiberglass fabric GF430P-PTFE135-8006 has well fire, abrasion resistance than any other ptfe coated fiber glass. It's anti static feature is even better. In order to fit different scene of application, thickness, unit weight, pattern, all can be customized base on your use method.
Data
Standard weight | 20oz/y2 |
Standard Thickness | 0.017inch |
Standard width | 1000mm 1520mm 1550mm 2000mm |
Coating | PTFE |
Colour | Grey |
Fire resistance | Well |
Coating temperature resistance | PTFE coating 620℉ |
Basic fabric working temperature | Basic fabric 1000℉ |
Yarn warp | ECG 37 1/0 |
Yarn weft | ECG 37 1/0 |
Construction warp | 48 ± 3 ends/inch |
Construction weft | 32 ± 3 ends/inch |
Applications

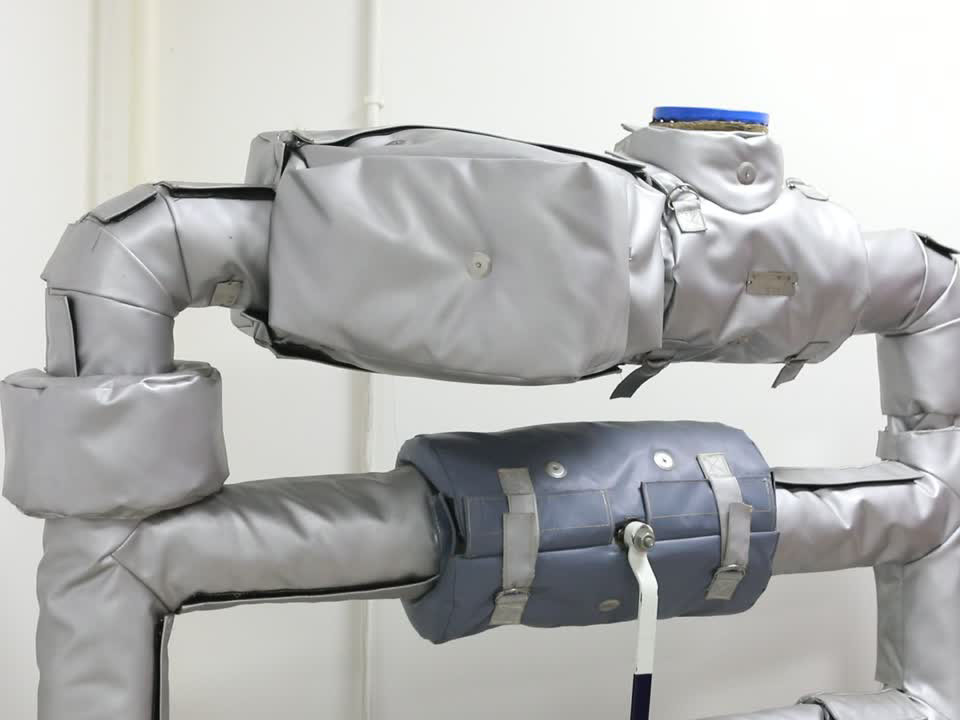

PTFE coated fiberglass fabric except used as fire protect and heat proof, GF430P-PTFE135-8006 can be used in liquid chemical material stock, for it anti static property can eliminate any sparks caused by static. its products contain: dust Lagging, fire curtain, removable heat insulation jacket and heat insulation mattress.
Guarantees
All SHIYANG FABRIC’s customers are covering by the warranty:
● Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, SHIYANG FABRIC will send out a new batch to replace without delaying.
● Timely delivery. – SHIYANG FABRIC usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
● Cost-effective (low price). – SHIYANG FABRIC understands the customers’ requirements of continually lowering the purchase prices. All guys at SHIYANG FABRIC keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
● Environmental protection & human health care. – SHIYANG FABRIC cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment.
Related Products
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
GF430P-PTFE135-8001 | 580 | 17 | 0.43 | 0.016 | Black | 1 side |
GF430P-PTFE133-8003 | 580 | 17 | 0.43 | 0.016 | Silver Grey | 1 side |
GF430P-PTFE233-8006 | 610 | 20 | 0.45 | 0.017 | Black/Grey | 2 sides |
Main products: Qualified fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
