Product Details

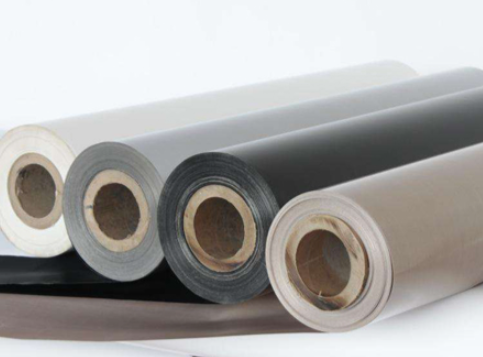

Product Name | Fiberglass Cloth For Pipe Insulation | Yarn Type | E-glass |
Alkali Content | Alkali Free | Weave Type | Plain Woven |
Coating | PTFE Coated | Weight | 540g/m2 |
Width | 100-200CM Or Customized | Thickness | 0.43m |
Color | Black, Grey, Or Customized | Temperature Resistance /WorkingTemperature | -70 ~ 260C |
Fiberglass | E-glass | Material | 100% Fiberglass |
Roll Length | 50 Meter Or Customized | Good Features | Non-sticky,heat/corrosion Resistance, Waterproof,anti-static |
Application | High-temperature/heat Resistant, Fireproof, Thermal Insulation | Good Features | Can Be Customized |
Highlight | 200CM PTFE Fiberglass Cloth,540g/M2 PTFE Fiberglass Cloth,200CM ptfe coated fiberglass | ||

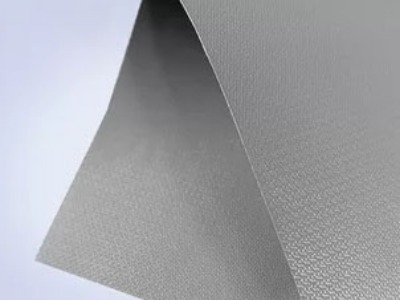

Product Description
SHIYANG FABRIC coated fabric combines the easy release and heat resistance of polytetrafluoroethylene (PTFE) with the strength and dimensional stability of fiberglass. PTFE coated fabric also referred to as coated fabric, is ideally suited for a variety of demanding industrial applications.
Dimensionally stable at temperatures from -100° to 500°F (-73° to 260°C), SHIYANG FABRIC coated fabric is non-toxic, odorless, tasteless, and is compliant for use in food processing, packaging, and handling. Made from nonwoven fiberglass cloth that has been coated with PTFE, SHIYANG FABRIC coated fabric provides exceptional durability and extremely low elongation (<1%). Its PTFE coating provides numerous performance-enhancing characteristics. PTFE fabric offers a very low coefficient of friction, high heat resistance, hydrophobic properties, and excellent dielectric properties. It is also chemically inert.
Advantages:
--Good temperature resistance, from -70-260℃
--Non-stick
--Easy to clean all kinds of grease, stains or other attachments on its surface
--Resistant to all kinds of strong acid and alkali corrosion, no burning,anti-aging
--Provides exceptional durability and extremely low elongation (<1%).
--Very low coefficient of friction, high heat resistance, hydrophobic properties, and excellent dielectric properties.
--Good anti-abrasion, easy to be cut, sewn and fabricated
--Chemically inert
--High Tensile Strength
Specification | Weight(g/m2) | Weight(mm) | Weight |
GF430P-PE135-8001 | 580 | 0.42 | black |
GF430P-PE133-8003 | 580 | 0.42 | grey |
GF430P-PE233-8006 | 680 | 0.45 | grey |
--Various petrochemical pipelines corrosion resistance and energy-saving insulation coating
--Electrical electronic insulation
--Temperature resistant coating materials
--Safety cloth, equipment cover, splash cover, power plant waste
--Covering or wrapping material in petroleum, chemical industries, insulating material, high temperature resistance material
--Other fire control systems.
